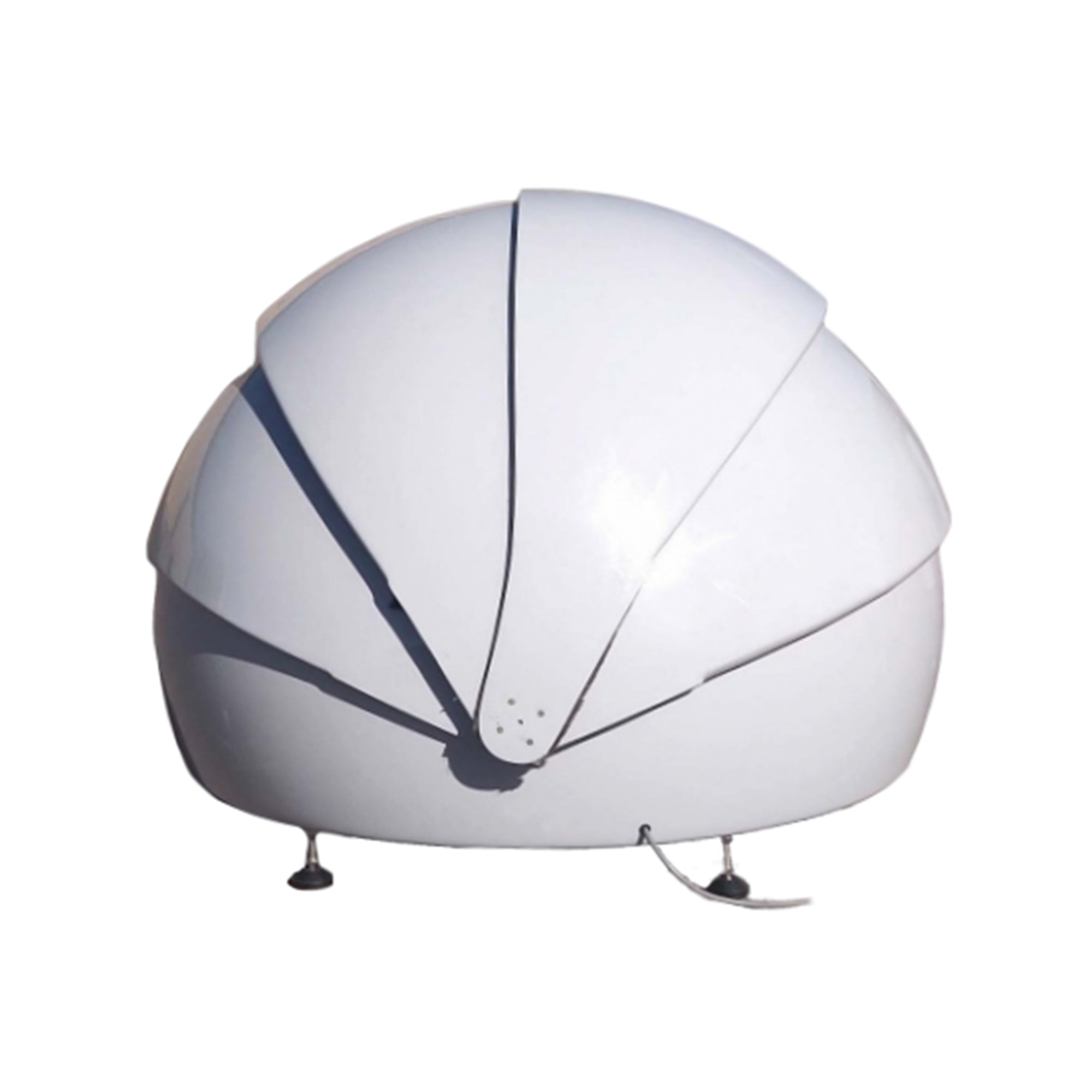

Counterdrone OmniDock Standard
SKU:
FR-COUNTE-44807795245304
•
Serial Logged Dispatch
•
256-Bit Encrypted
$15,500.00
Starting at $646/mo with Affirm or commercial leasing
FREQUENTLY BOUGHT TOGETHER
Bundle • Save $56
Verified Fit
Dronetag RIDER Portable Drone Detector
$1,129.00
• In Stock • Ships Immediately
The First Drone-Agnostic, Multi-UAV Docking Station
Configurable for the broadest range of autonomous operations
- 360° wind resistance
- Same footprint open or closed
- Moisture can’t accumulate on top
- Rapid actuation
- Modular, circular floor allows for multiple drone configurations
- Radio frequency transparent – Drones maintain a GPS fix while dock is closed
Its signature hemispheric shape provides superior wind and weather resistance while requiring the least amount of space—maintaining a consistent footprint open or closed.
OmniDock Standard is designed with configurable floors and can house one large drone or two smaller drones giving you twice the missions, redundancy, and threat response. They can even accommodate cable/winch systems for tethered drones.
The OmniDock is drone agnostic and will fit many types of commercial drones, making it the perfect choice if you already own drones, or have custom aircraft designed for your specific mission-set.
Accommodates Two Standard Sized Drones or One Large Drone
Mobile Applications

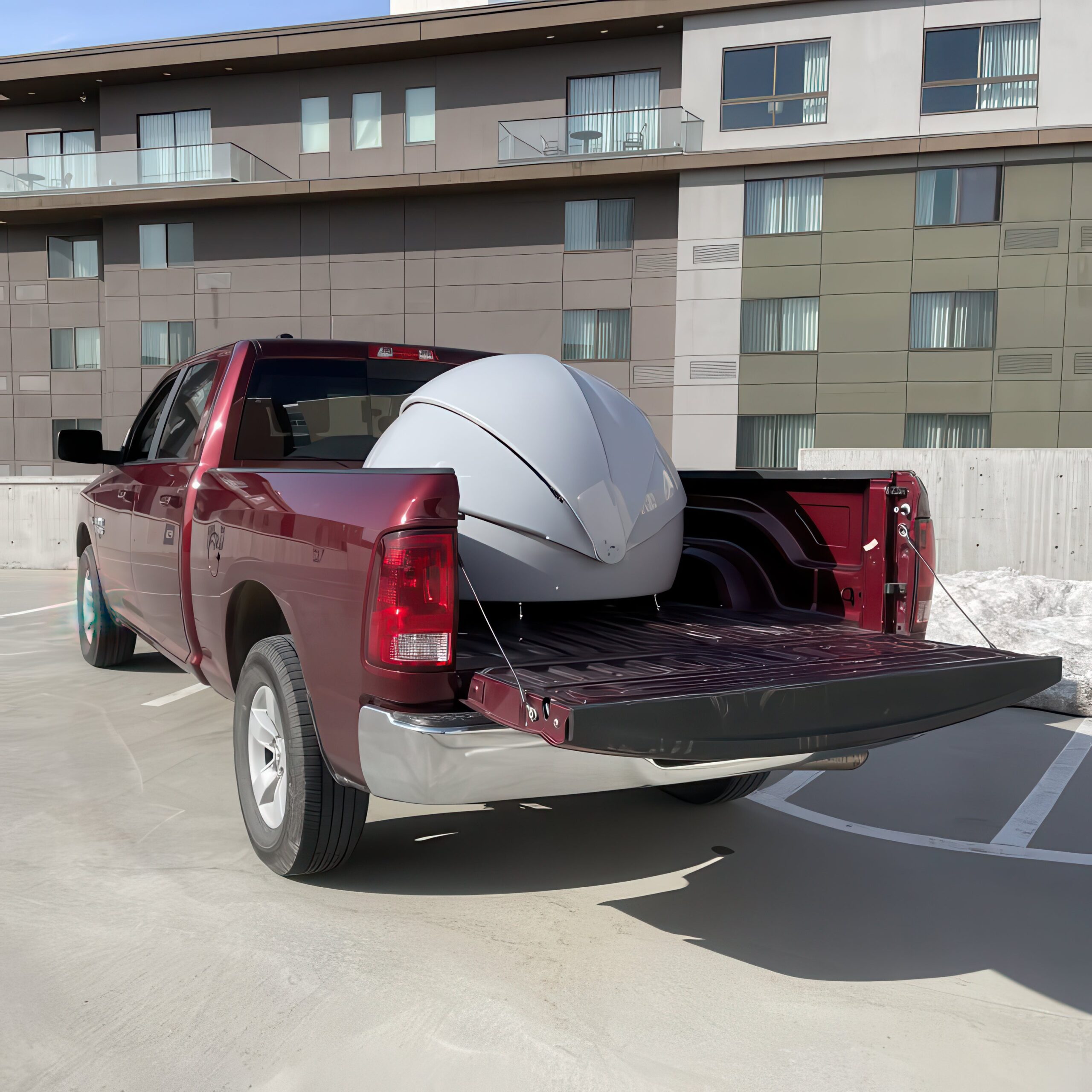

OmniDock fits in the back of a standard sized pickup truck and can operate off the trucks power. The clamshell dome design means it doesn’t get bigger when it opens so wherever it fits, it can operate.
Counterdrone offers the most flexible solutions for all types of autonomous applications.
Power & Climate Control
- Redundant 120V AC or 220V AC power supplies
- Temperature & humidity sensors
- Electric HVAC for operation in all climates
- Battery backup for continued operation during power outage
Storage Space Under Charging Floor
- User-accessible LTE router in storage area
Space for additional drones, batteries, etc
Charging
- Contact charging for drones up to 12S
- Float charge for drones that remain powered 24/7
- Up to 1C for DJI drones, 2C for custom craft
- Can charge two different type drones simultaneously (e.g a 4S Mavic and a 6S Pixhawk drone
- A small kit attaches easily to the drone without requiring modification
- Charge stats are reported in real-time and logged
- Fully protected from short circuits, overvolt, overcurrent
Safety & Reliability
- Dock only closes once drone is positioned to charge
- Charging pads are positioned to ensure clearance between drones and clearance from clamshell
- Leaves will stop closing if an obstacle is detected
- Charging system has multiple safety features built in
- Dock features redundant power supplies for both actuation and charging
- Multiple sensors report issues before they manifest into failures
Integrations
OmniDock is simple to integrate with. Contact us with your specific fleet management requirements. We have an open-source approach to software and hardware and have performed many custom integrations for drone operators across several different industries.
Hardware Specifications
Detailed technical architecture and verified subsystem metrics.
Model Designation
Counterdrone OmniDock Standard
Serial / Master SKU
FR-COUNTE-44807795245304
Sector Classification
Drones
Hardware Allocation
Factory Certified Stock
Transit Casing
Reinforced Heavy-Duty Flight Case
Courier Protocol
Direct Signature Courier Freight
USA Warranty Coverage
Full Manufacturer Direct
Quality Assurance
Multi-Point Pre-Dispatch Bench Test
Comprehensive Subsystem Parameters
OmniDock Standard Specifications
| Height |
36″ x 19″ |
| Width | 51″ at Leaf Axles |
| Weight | ~100 lbs. |
| Charging Floor Diameter | 5.28 cu/ft under charging floor |
| Outside Air Operating Temperature | -40° to 120° F |
Compatibility
Two Mavic 3 Enterprise sized drones OR One Matrice 30T sized drone
