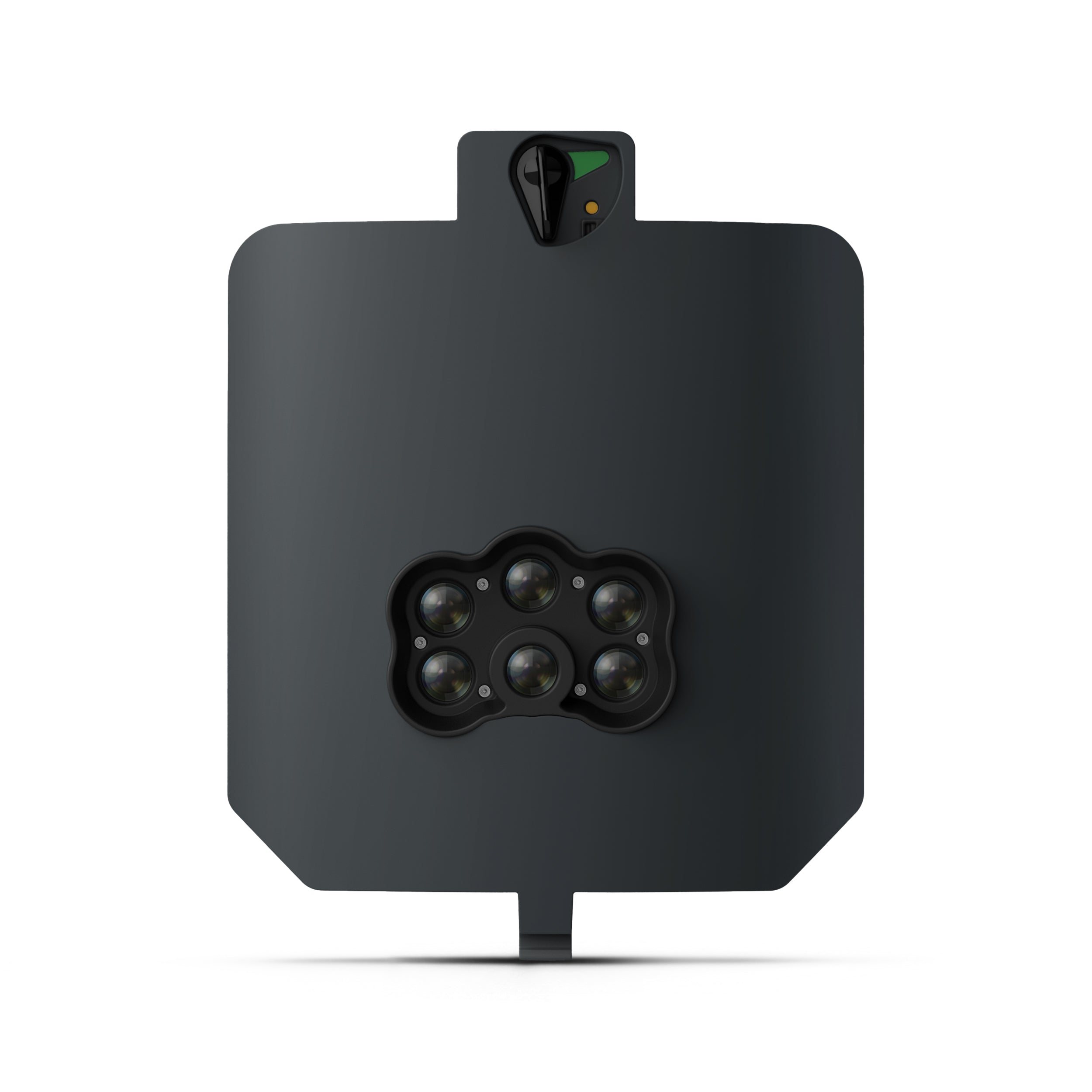

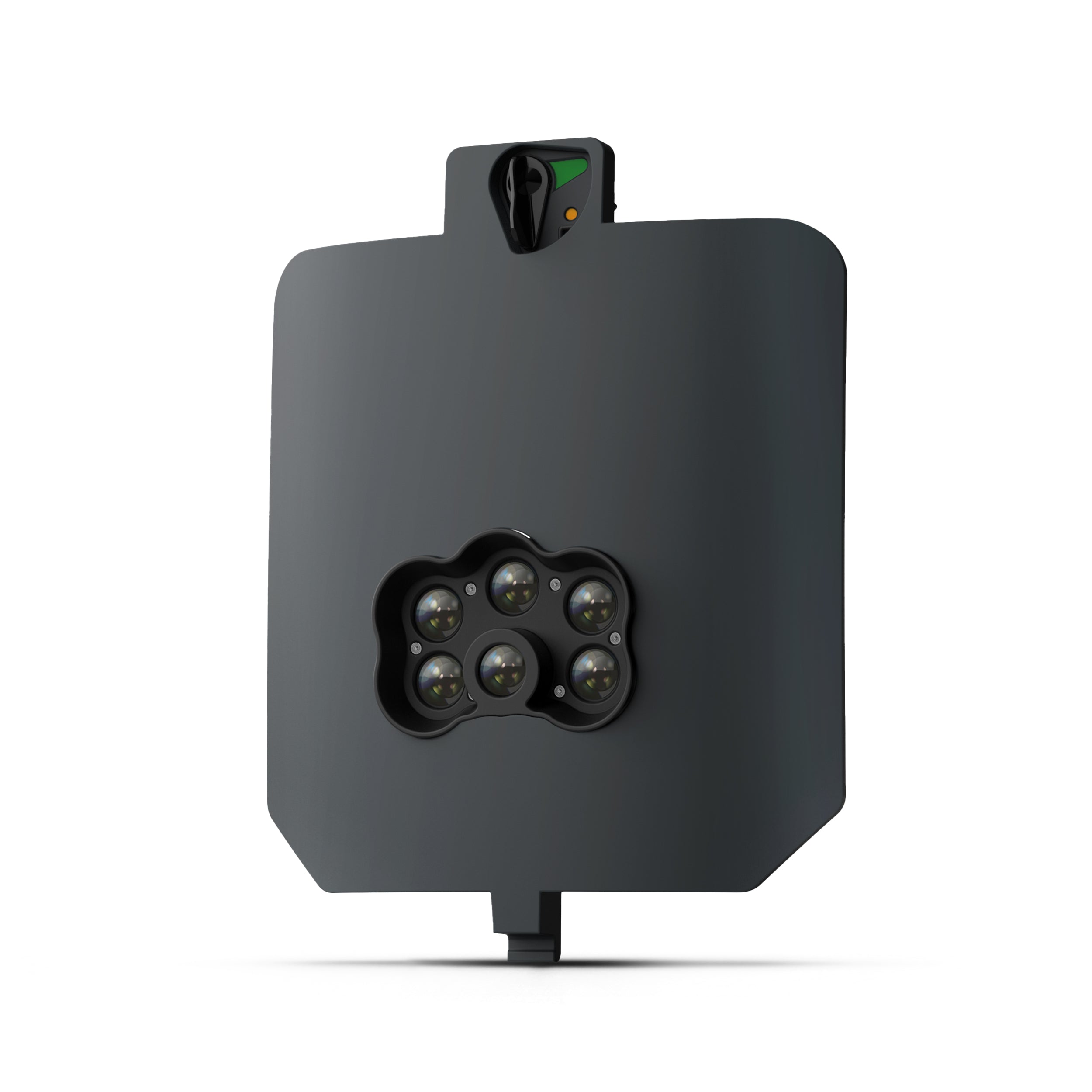

Wingtra WingtraRAY RedEdge-P Multispectral Payload
SKU:
FR-WINGTR-46607254454520
•
Serial Logged Dispatch
•
256-Bit Encrypted
$15,800.00
Starting at $658/mo with Affirm or commercial leasing
FREQUENTLY BOUGHT TOGETHER
Bundle • Save $56
Verified Fit
Dronetag RIDER Portable Drone Detector
$1,129.00
• In Stock • Ships Immediately
Actionable Vegetation Insights, One Flight
The MicaSense RedEdge-P payload equips WingtraRAY with five precisely aligned multispectral bands plus a 5.1 MP panchromatic imager, capturing both true-color and analytic layers in a single pass. Detect crop stress, gauge biomass, or map forest canopies at 2 cm / 0.8 in GSD and cover up to 180 ha / 440 ac per flight.
Key Benefits
- Dual-output capture — RGB orthomosaic and calibrated multispectral layers in one mission.
- Fine-grained analytics — 2 cm GSD reveals subtle chlorophyll and moisture variance.
- High efficiency — map 440 ac at 400 ft, or 230 ac at 2 cm GSD with 50 % side-overlap.
- Survey-grade accuracy — PPK delivers ≤ 6 cm (0.2 ft) absolute RMS with no GCPs.
- Seamless workflow — direct import to WingtraCLOUD and leading ag-analytics suites.
Hardware Specifications
Detailed technical architecture and verified subsystem metrics.
Model Designation
Wingtra WingtraRAY RedEdge-P Multispectral Payload
Serial / Master SKU
FR-WINGTR-46607254454520
Sector Classification
Drones
Hardware Allocation
Factory Certified Stock
Transit Casing
Reinforced Heavy-Duty Flight Case
Courier Protocol
Direct Signature Courier Freight
USA Warranty Coverage
Full Manufacturer Direct
Quality Assurance
Multi-Point Pre-Dispatch Bench Test
Comprehensive Subsystem Parameters
RedEdge-P Technical Specifications
| Bands | RGB, Red-edge, NIR (5 × 5.5 mm lenses) + 5.1 MP panchromatic (10.3 mm) |
| Payload weight (incl. mount) | 502 g (1.11 lb) |
| GSD @ 400 ft (120 m) | 4 cm/px (1.6 in/px) |
| Lowest GSD | 2 cm/px (0.8 in/px) @ 200 ft (60 m) |
| Max coverage @ 400 ft* | 180 ha (440 ac) |
| Max coverage @ lowest GSD* | 90 ha (230 ac) |
| Accuracy (PPK) | ≤ 6 cm (0.2 ft) RMS (X, Y, Z) without GCPs |
| Trigger / interval | 0.5 s minimum • ≥ 8 m (26 ft) trigger distance |
| Outputs | Calibrated TIFFs, reflectance metadata, full-res RGB |
| *Coverage assumptions | 70 % side-overlap, calm conditions |
In the Box
(1) RedEdge-P multispectral payload module
(1) Nadir quick-lock mount (pre-installed)
(1) Reflectance calibration panel
(1) Protective lens cap
(1) Payload transport sleeve
(1) Quick-start & safety guide
Compatibility
WingtraRAY
Standard Package Inventory
Complete unboxing checklist and verified included components.
Commercial Freight Protocols & Regulatory Compliance
Fanrum Electronics operates strict chain-of-custody protocols for all high-ticket commercial hardware orders.
Insured Courier Signature Freight
All orders over $500 automatically receive complimentary insured commercial freight with mandatory adult signature delivery upon arrival. Shipments are double-cartoned, strapped, and dispatched with tamper-evident serial logging to guarantee complete chain-of-custody.
Regulatory & Federal Standards
All UAV and aerial mapping platforms are verified for FAA Remote ID certification and relevant NDAA compliance standards. Hardware is sourced exclusively through authorized North American distributors with verifiable serial pedigrees.
Centralized Distribution Hub
In-stock units dispatch directly from our centralized distribution facility within 24 hours of payment clearance. Standard commercial courier transit times range between 3 to 5 business days across the contiguous 48 United States.
30-Day Inspection Guarantee
Commercial operators have 30 days from courier delivery to verify unit functionality, calibration values, and accessory integrity. Defective hardware is replaced immediately under our direct concierge priority warranty queue.
Frequently Asked Technical Questions
Direct operational answers from our technical hardware team.
Every system over $500 is shipped with full transit replacement insurance and assigned an Adult Signature Required tag. Freight cannot be left unattended on porches or docks. Real-time courier tracking numbers are transmitted via email immediately upon hub departure.
Yes. Government agencies, universities, and commercial enterprises can submit formal POs or request pro-forma wire transfer invoices. Click "Request Official Commercial Quote / PO" above to connect directly with our B2B allocation desk.
All units are authentic, serial-registered hardware covered by official USA manufacturer warranties. In addition, Fanrum provides a 30-day technical support period where our certified technicians assist with setup, firmware updates, and calibration.
Yes. Before dispatch from our Conway warehouse, our engineering team inspects exterior packaging integrity, confirms factory security seals, and verifies optical/electronic payload alignment to guarantee zero dead-on-arrival occurrences.
