Freefly Alta X Gen2 (NDAA)
SKU:
FR-FREEFL-46866046157048
•
Serial Logged Dispatch
•
256-Bit Encrypted
$45,650.00
Starting at $1902/mo with Affirm or commercial leasing
FREQUENTLY BOUGHT TOGETHER
Bundle • Save $56
Verified Fit
Dronetag RIDER Portable Drone Detector
$1,129.00
• In Stock • Ships Immediately

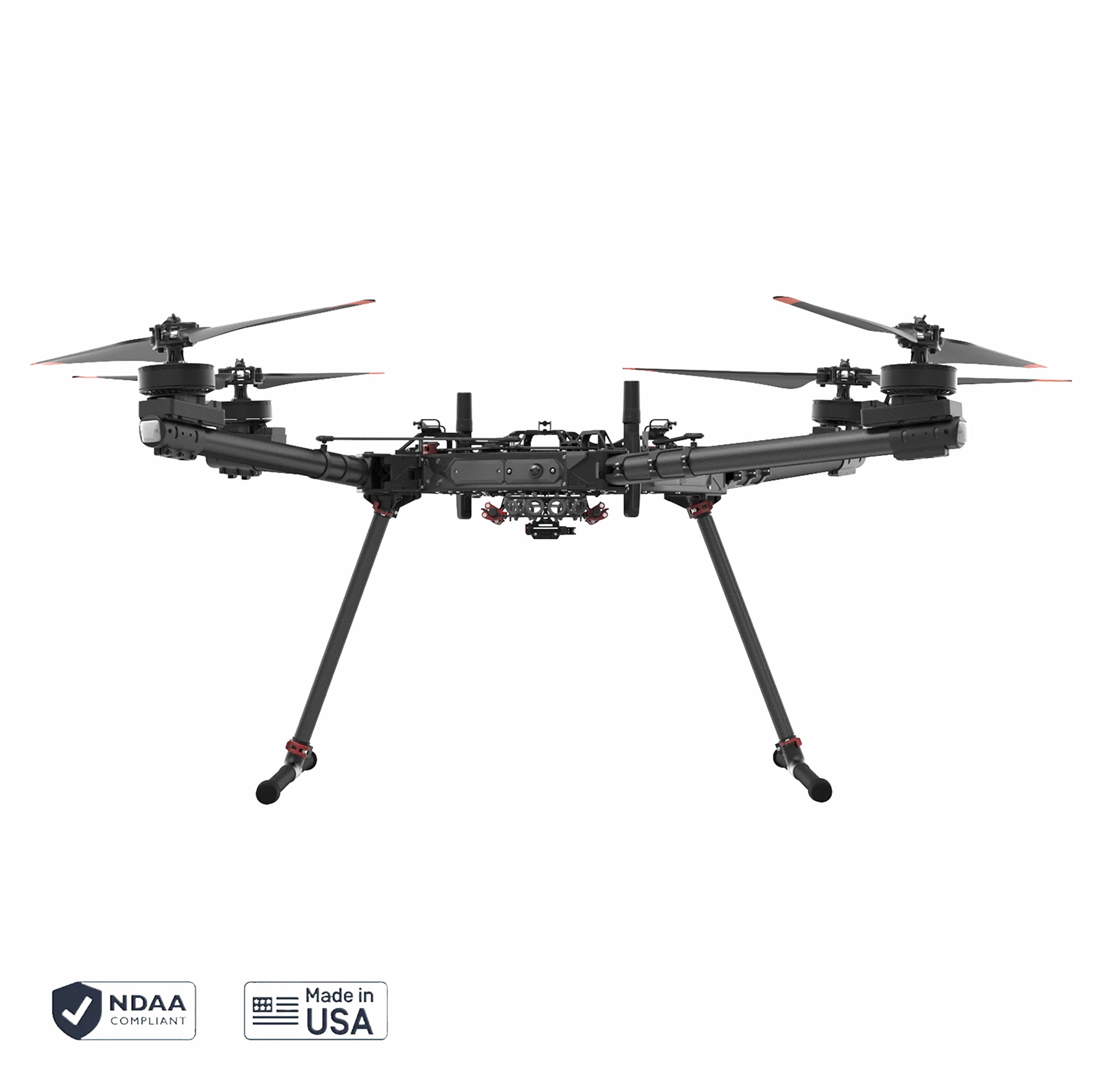

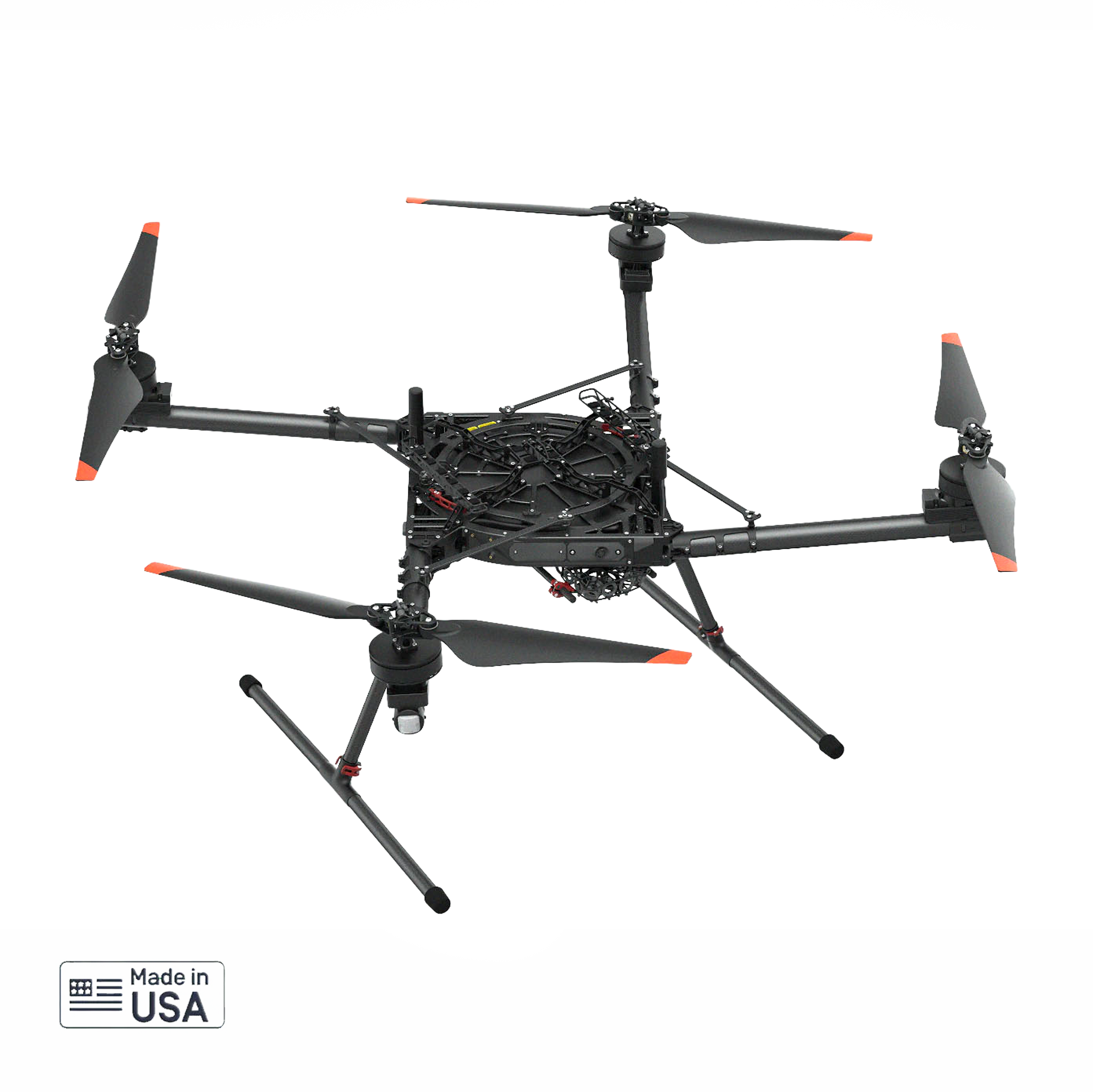

Freefly Alta X Gen2 (NDAA) is a heavy-lift multirotor for teams that need maximum payload capacity, dependable endurance, and clean integration with modern sensors and data workflows. It pairs the proven Alta X airframe with the same custom Skynode mission computer used on Astro Max, then adds an NDAA-compliant Doodle Labs control link for secure operations.
From large cinema builds to multi-sensor industrial payloads, Alta X Gen2 (NDAA) delivers precise control authority, rapid field setup, and a flexible payload architecture. The internal payload bay, Smart Dovetail interface, onboard power regulation, and Pilot Pro ground control streamline missions from planning to handoff.
Heavy-Lift, High-Stability Platform
- 35 lb payload class: carry large cinema rigs, advanced sensors, or dual/multi-payload stacks with confident handling.
- Alta X chassis: carbon-fiber structure, weather-tolerant design, and a fast, repeatable field-deploy workflow.
- ActiveBlade prop compatibility: smooth response and stability under heavy loads.
NDAA-Ready Autonomy & Control
- Custom Skynode flight controller: precise navigation, enhanced GNSS resilience, and intelligent failsafes tuned for big-lift missions.
- Doodle Labs RF link (NDAA): resilient, compliant command and video link integrated with Pilot Pro.
- Mission planning & logging: integrated telemetry and flight logs suitable for enterprise and inspection workflows.
Smart Dovetail & Internal Payload Bay

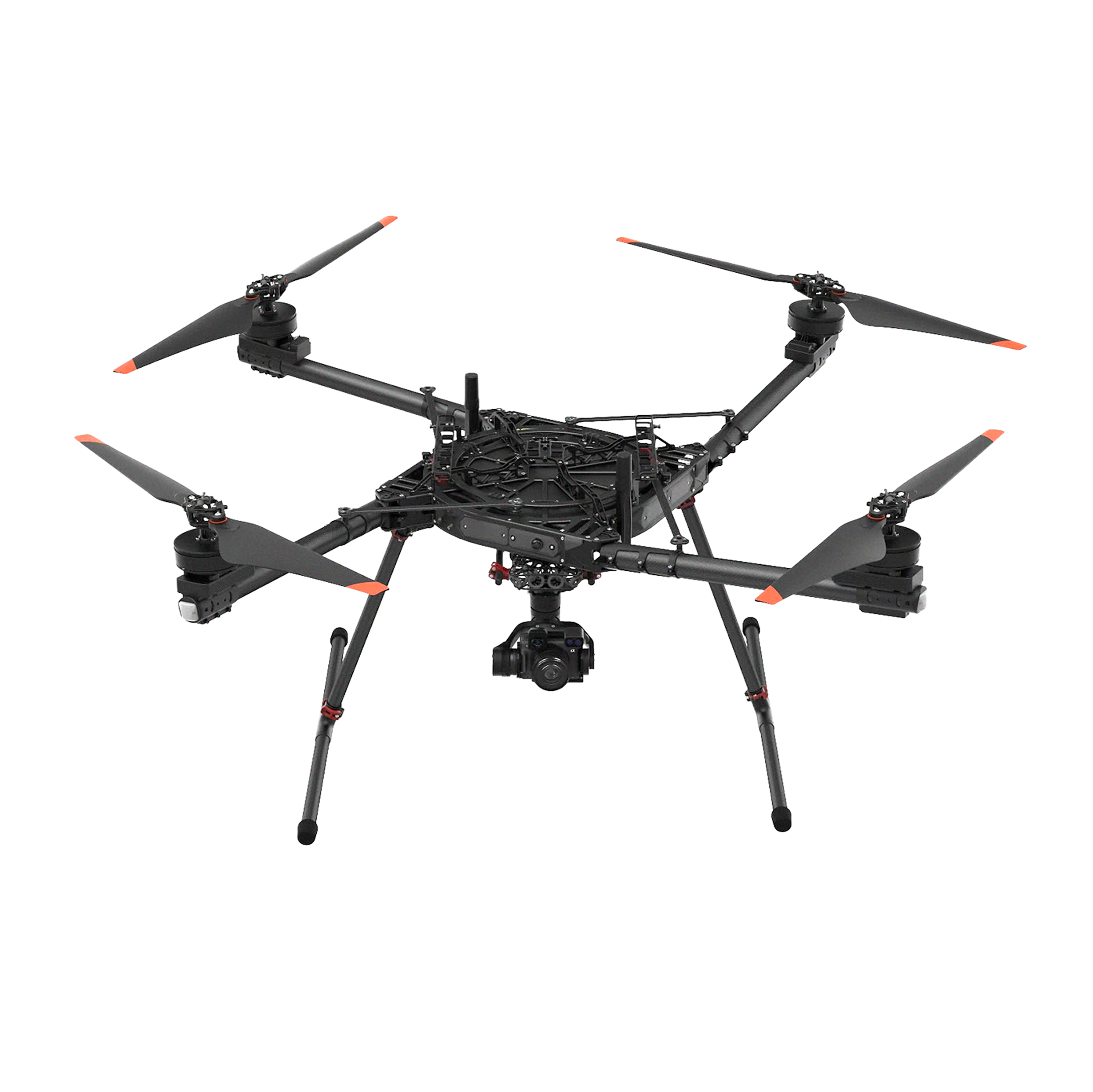

- Quick-connect payloads: Smart Dovetail exposes power and data for Freefly and third-party integrations (LR1 at launch, with additional options on the roadmap).
- Internal bay access: removable chassis panels open a protected integration space for compute, radios, and custom hardware.
- Expanded I/O: onboard Ethernet and regulated payload power simplify custom sensing or control stacks.
Operator-Focused Power Architecture
- Upgraded smart batteries (AS150): improved flight-time estimation and streamlined ground handling.
- Onboard regulation: native 12 V and 24 V rails to power payloads without external converters.
Field Gear That Speeds Setup
- 12 mm (~0.47 in) rail mount: standard rails for rapid payload mounting and balance.
- Smart Dovetail with isolated mount: vibration isolation suited for LR1 and similar payloads.
- Skid landing gear: quick-release legs ~15 in long for stable ground ops and easy transport.
- Pilot Pro controller (Doodle Labs RF): precise, robust control with a live FPV feed.
- Transport case: fits Alta X Gen2 with rails and Smart Dovetail installed, Pilot Pro, spare ActiveBlade props, and skid gear.
Connectivity & Compliance-Ready Setup
- Remote connectivity options: onboard LTE support for remote operations and data sync where available.
- Standard Remote ID: ships preconfigured for FAA Standard Remote ID to align with U.S. airspace requirements.
- NDAA alignment: airframe and ground hardware configured with compliant components, including the Doodle Labs link.
Built for Demanding Missions
- Cinema: stabilized heavy camera packages with clean cable runs and regulated power.
- Inspection & mapping: large-format RGB, thermal, ranging, or multi-sensor payloads on a single aircraft.
- Cargo & specialty: internal-bay integrations and gear options for delivery or custom robotics tasks.
Hardware Specifications
Detailed technical architecture and verified subsystem metrics.
Model Designation
Freefly Alta X Gen2 (NDAA)
Serial / Master SKU
FR-FREEFL-46866046157048
Sector Classification
Drones
Hardware Allocation
Factory Certified Stock
Transit Casing
Reinforced Heavy-Duty Flight Case
Courier Protocol
Direct Signature Courier Freight
USA Warranty Coverage
Full Manufacturer Direct
Quality Assurance
Multi-Point Pre-Dispatch Bench Test
Comprehensive Subsystem Parameters
Alta X Gen2 (NDAA) Airframe
| Maximum payload capacity | 35 lb |
| Flight controller | Custom Skynode mission computer |
| Payload interface | Smart Dovetail; compatible with LR1 at launch; internal payload bay with removable panels |
| Onboard power | Regulated 12 V and 24 V payload rails |
| Connectivity & I/O | Ethernet for integrations; onboard FPV camera with live feed to Pilot Pro; LTE support |
| Standard Remote ID | Preconfigured for FAA Standard Remote ID |
| Landing gear | Skid landing gear with quick-release legs ~15 in long (14.97 in) |
| Chassis | Carbon-fiber, field-deployable, weather-tolerant design |
Power System
| Battery type | Alta X Gen2 12S batteries with AS150 connectors (sold separately) |
| Battery features | Upgraded smart batteries with improved flight-time estimation |
| Charging | Dual-channel 12S charger with AS150 connectors (sold separately) |
Included Pre-Installs
| Rails | 12 mm rail mount for payloads |
| Smart Dovetail | Isolated mount suited for LR1 payload |
| FPV | Onboard FPV camera with viewable feed on Pilot Pro |
Pilot Pro Controller (NDAA)
| Controller type | Freefly Pilot Pro |
| Primary radio link | Doodle Labs RF (NDAA compliant) |
| Video | Displays onboard FPV camera feed |
Alta X Gen2 Transport Case
| Capacity | Holds Alta X Gen2 with 12 mm rails and Smart Dovetail installed, Pilot Pro, spare ActiveBlade props, and skid landing gear (medium legs) |
Standard Package Inventory
Complete unboxing checklist and verified included components.
Verified Box Manifest
(1) Alta X Gen2 (NDAA) Travel Case
(1) Alta X Gen2 (NDAA) Airframe (Standard Remote ID; props installed)
(1) Extra Bits Kit
(1) AS150U fused adapter for safe bench configuration
(1) Skid Landing Gear (380 mm / 14.97″ legs only)
(1) 12 mm Rail Kit
(1) Smart Dovetail with isolated mount (LR1-ready)
(1) Pilot Pro Controller (preconfigured for Alta X Gen2; Doodle Labs RF)
*Batteries and chargers required for flight are not included; sold separately.
Recommended (not included): at least one dual-channel charger and six Alta X Gen2 12S batteries per aircraft. If you cannot charge in the field and need more than three flights, add one extra battery pair per additional flight. Each charger charges two batteries at a time; additional chargers increase throughput.
Mission-specific hardware (not included): for cinema or vibration-damped payloads, use Payload Vibration Damper + Skyview Landing Gear + Mōvi Pro Landing Gear. For cargo operations, use Cargo Landing Gear, application-specific accessories, and the Short Quick Release Mount.
*Select accessories are slated for availability soon and will be priced similarly to existing Alta X batteries (~$1,400 per pair) and chargers (~$750).
Compatibility
Mounting & Isolation
Payload Vibration Damper
Alta X Short Quick Release Mount
Landing Gear
Cargo Landing Gear
Skyview Landing Gear for Alta X
Power & Charging
Alta X Gen2 12S Batteries with AS150 connectors*
Dual-channel 12S Charger with AS150 connectors*
Navigation
RTK GPS Ground Station
Propellers
CW Single Motor Propeller Set for Alta X
CCW Single Motor Propeller Set for Alta X
CW Single Motor Propeller Set with ActiveBlade (M4 fasteners)
CCW Single Motor Propeller Set with ActiveBlade (M4 fasteners)
*Accessories marked with an asterisk are planned for availability soon and are expected to be priced similarly to current Alta X batteries (~$1,400 per pair) and chargers (~$750).
Compliance
Standard Remote ID
- Compliant: YES
- Ships with Remote ID hardware preinstalled and configured for FAA Standard Remote ID.
- BVLOS: Requires an FAA waiver or approved CONOPS; the aircraft can support BVLOS programs when operated under the appropriate approvals.
NDAA §848
- System compliance: YES (NDAA-configured variant).
- Airframe (Alta X Gen2): Compliant.
- Pilot Pro controller: Compliant.
- Doodle Labs radio link: Compliant.
DIU Blue UAS
- Compliant: NO (not currently listed on the DoD DIU Blue UAS list).
- Airframe (Alta X Gen2): Approval in process; not currently Blue listed.
- Pilot Pro controller: Compliant component.
- Doodle Labs radio link: Compliant component.
Commercial Freight Protocols & Regulatory Compliance
Fanrum Electronics operates strict chain-of-custody protocols for all high-ticket commercial hardware orders.
Insured Courier Signature Freight
All orders over $500 automatically receive complimentary insured commercial freight with mandatory adult signature delivery upon arrival. Shipments are double-cartoned, strapped, and dispatched with tamper-evident serial logging to guarantee complete chain-of-custody.
Regulatory & Federal Standards
All UAV and aerial mapping platforms are verified for FAA Remote ID certification and relevant NDAA compliance standards. Hardware is sourced exclusively through authorized North American distributors with verifiable serial pedigrees.
Centralized Distribution Hub
In-stock units dispatch directly from our centralized distribution facility within 24 hours of payment clearance. Standard commercial courier transit times range between 3 to 5 business days across the contiguous 48 United States.
30-Day Inspection Guarantee
Commercial operators have 30 days from courier delivery to verify unit functionality, calibration values, and accessory integrity. Defective hardware is replaced immediately under our direct concierge priority warranty queue.
Frequently Asked Technical Questions
Direct operational answers from our technical hardware team.
Every system over $500 is shipped with full transit replacement insurance and assigned an Adult Signature Required tag. Freight cannot be left unattended on porches or docks. Real-time courier tracking numbers are transmitted via email immediately upon hub departure.
Yes. Government agencies, universities, and commercial enterprises can submit formal POs or request pro-forma wire transfer invoices. Click "Request Official Commercial Quote / PO" above to connect directly with our B2B allocation desk.
All units are authentic, serial-registered hardware covered by official USA manufacturer warranties. In addition, Fanrum provides a 30-day technical support period where our certified technicians assist with setup, firmware updates, and calibration.
Yes. Before dispatch from our Conway warehouse, our engineering team inspects exterior packaging integrity, confirms factory security seals, and verifies optical/electronic payload alignment to guarantee zero dead-on-arrival occurrences.
