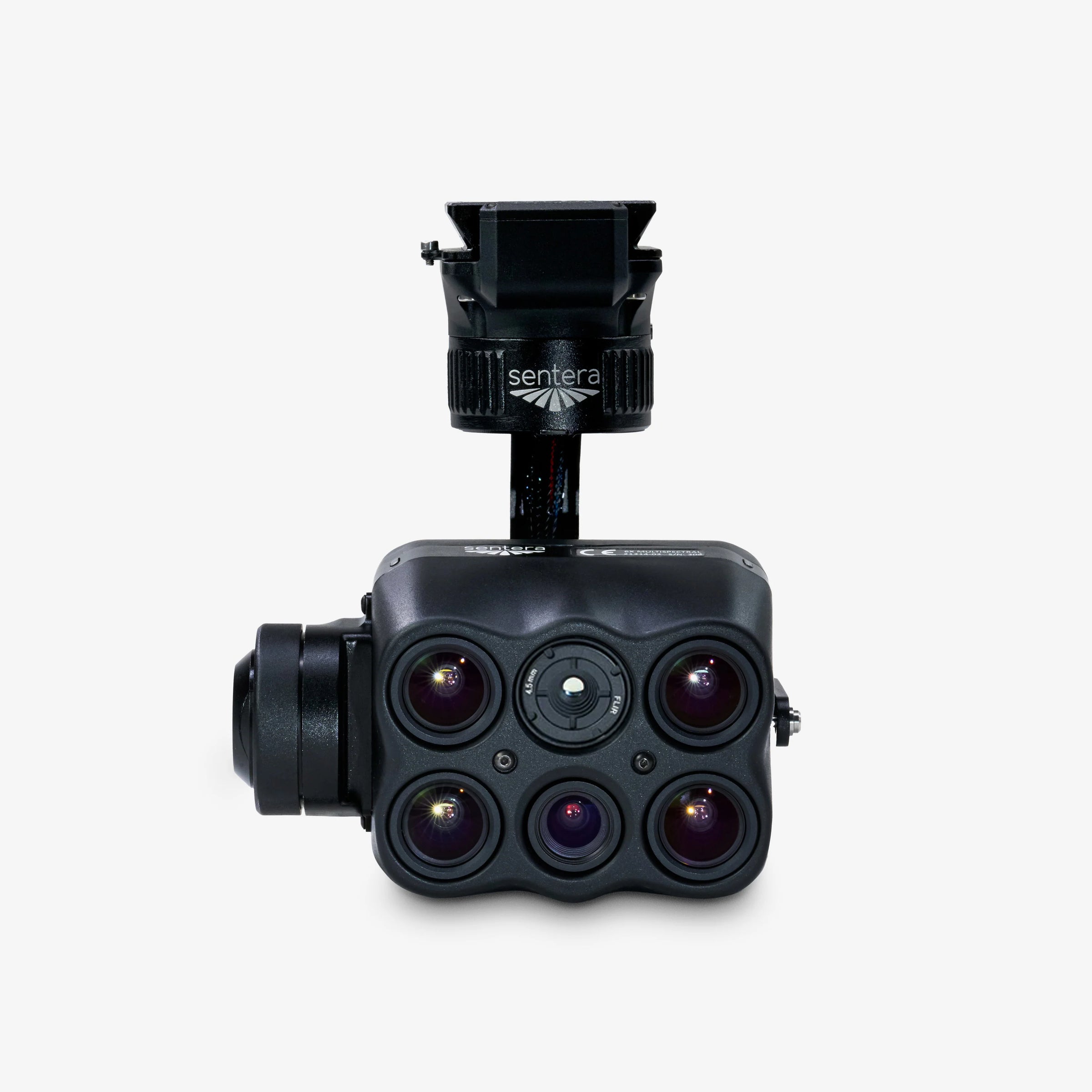

Sentera 6X Thermal Sensor Kit with Smart Dovetail for Freefly
SKU:
FR-SENTER-49720649548024
•
Serial Logged Dispatch
•
256-Bit Encrypted
$17,825.00
Starting at $743/mo with Affirm or commercial leasing
FREQUENTLY BOUGHT TOGETHER
Bundle • Save $56
Verified Fit
Dronetag RIDER Portable Drone Detector
$1,129.00
• In Stock • Ships Immediately
Capture the insights that matter with the NDAA Complaint Sentera 6X Thermal. Equipped with four 3.2MP multispectral imagers, a 20MP RGB camera, and a FLIR Boson 320 thermal imager, it delivers precise, high-quality data for advanced aerial mapping and analysis.
Its ultra-lightweight, gimbaled design, fast image capture, and 512GB onboard SSD storage maximize efficiency in the field, while seamless integration with leading analytics platforms streamlines your workflow. Designed for agronomists, researchers, and industry professionals, the 6X Thermal transforms accurate imagery into confident, data-driven decisions.
Hardware Specifications
Detailed technical architecture and verified subsystem metrics.
Model Designation
Sentera 6X Thermal Sensor Kit with Smart Dovetail for Freefly
Serial / Master SKU
FR-SENTER-49720649548024
Sector Classification
Drones
Hardware Allocation
Factory Certified Stock
Transit Casing
Reinforced Heavy-Duty Flight Case
Courier Protocol
Direct Signature Courier Freight
USA Warranty Coverage
Full Manufacturer Direct
Quality Assurance
Multi-Point Pre-Dispatch Bench Test
Comprehensive Subsystem Parameters
| Resolution | 5184px by 3888px (RGB) 2048px by 1536px (Multispectral) 320px by 256px (Thermal) |
| GSD @ 200ft | 0.4in (1.0cm) RGB 1.0in (2.6cm) Multispectral 6.9in (17.5cm) Thermal LWIR |
| Shutter Type | Electronic Rolling Shutter (RGB) Global (Multispectral) Shutterless (Thermal) |
| Frame Rate | 5 FPS (0.2s) |
| Image Format | 8-bit JPEG (RGB), 12-bit TIFF (Multispectral), 16-bit TIFF (Thermal) |
| Spectral Bands | Green: 550nm CWL x 20nm Red: 670nm CWL x 30nm Red Edge: 715nm CWL x 10nm NIR: 840nm CWL x 20nm RGB: IR cut 650nm Thermal Infrared: Radiometric: 8um to 14um |
| Storage | 512 GB Internal SSD |
| Compatible Drones | Freefly: Astro |
| Supported Protocols | DJI, MAVlink V1 & V2, Custom |
| Interfaces | USB-C 3.0, Gigabit Ethernet, PPS, Serial, Discrete I/O |
| Power Input | 10.5 – 26V |
| Power Consumption | 15W Typical, 18W Max |
| Weight (sensor only) | 290g |
| Weight (with gimbals) | Smart Dovetail: 525g |
In the Box
(1) Travel Case w/ Custom Foam
(1) 6X Thermal Sensor
(1) Gimbal with Smart Dovetail
(1) Incident Light Sensor; GPS Module
(1) Calibrated Reflectance Panel
(1) Light Sensor Mounting Kit
(1) 10ft USB-C Cable
(1) AC Wall Power Adapter
(1) Right Angle USB-C adapter
