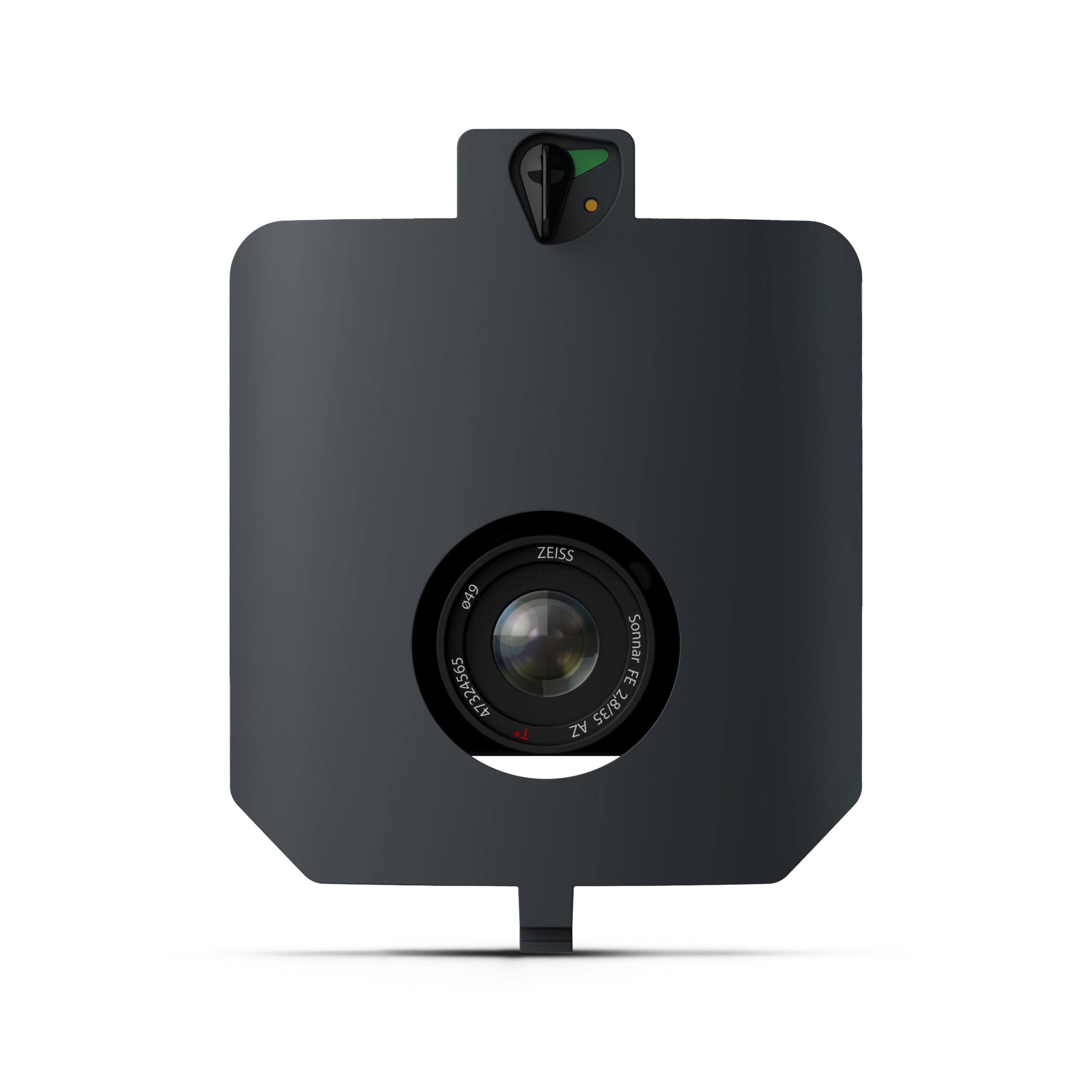

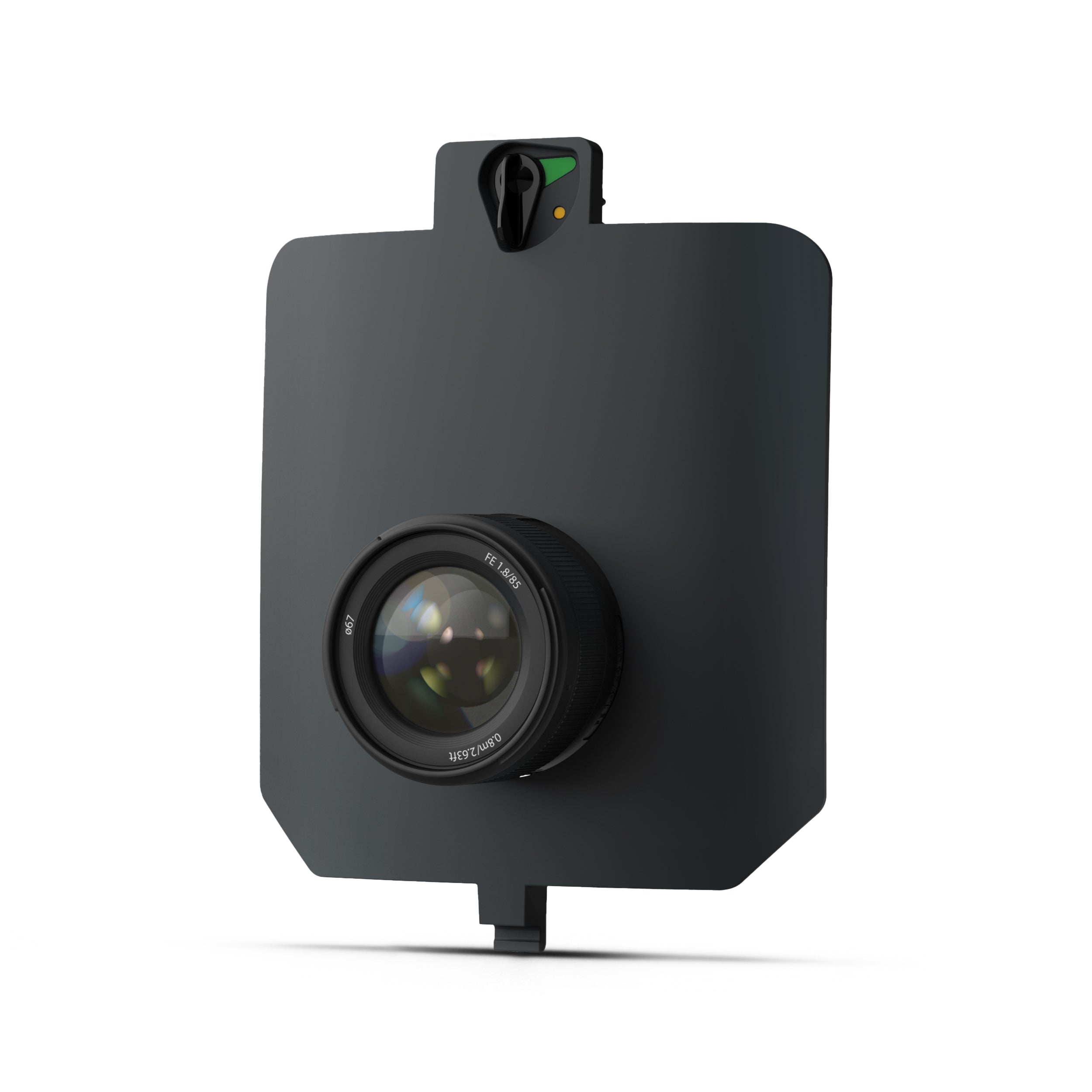

Wingtra WingtraRAY INSPECT Payload
SKU:
FR-WINGTR-46607112405240
•
Serial Logged Dispatch
•
256-Bit Encrypted
$24,300.00
Starting at $1013/mo with Affirm or commercial leasing
FREQUENTLY BOUGHT TOGETHER
Bundle • Save $56
Verified Fit
Dronetag RIDER Portable Drone Detector
$1,129.00
• In Stock • Ships Immediately
Millimeter-Level Aerial Inspections
The INSPECT payload equips WingtraRAY with a 61 MP full-frame sensor and 85 mm telephoto lens, delivering down-to-0.25 cm / 0.1 in GSD from 200 ft AGL. Inspect railways, runways, facades, and critical assets in razor-sharp detail while still covering 100 ha / 250 ac per flight at 400 ft.
Key Benefits
• Ultra-high resolution — Detect cracks and defects at sub-millimeter scale.
• Fast trigger — 0.4 s interval keeps images crisp even at 22 m/s cruise.
• Efficient coverage — Map 250 ac at 0.5 cm/px in a single sortie.
• Reliable accuracy — PPK delivers ≤ 3 cm (0.1 ft) absolute RMS without GCPs.
• Seamless workflow — Plan, fly, and process inside WingtraCLOUD for same-day reports.
Hardware Specifications
Detailed technical architecture and verified subsystem metrics.
Model Designation
Wingtra WingtraRAY INSPECT Payload
Serial / Master SKU
FR-WINGTR-46607112405240
Sector Classification
Drones
Hardware Allocation
Factory Certified Stock
Transit Casing
Reinforced Heavy-Duty Flight Case
Courier Protocol
Direct Signature Courier Freight
USA Warranty Coverage
Full Manufacturer Direct
Quality Assurance
Multi-Point Pre-Dispatch Bench Test
Comprehensive Subsystem Parameters
INSPECT Technical Specifications
| Sensor | 61 MP full-frame, focal-plane shutter |
| Lens / focal length | 85 mm (3.35 in) telephoto, nadir mount |
| GSD @ 400 ft (120 m) | 0.5 cm/px (0.20 in/px) |
| Lowest GSD | 0.25 cm/px (0.10 in/px) @ 200 ft (60 m) |
| Max coverage @ 400 ft* | 100 ha (250 ac) • 81 % frontal overlap |
| Max coverage @ lowest GSD* | 50 ha (125 ac) @ 200 ft |
| Accuracy (PPK, no GCPs) | Horizontal / Vertical ≤ 3 cm (0.1 ft) RMS |
| Payload weight (incl. mount) |
585 g (1.29 lb) |
| Minimal trigger time | 0.4 s • Min. trigger distance 8 m (26 ft) |
| *Coverage assumptions | 60 % side-overlap, calm conditions |
Standard Package Inventory
Complete unboxing checklist and verified included components.
Verified Box Manifest
(1) INSPECT payload module with 61 MP sensor
(1) Nadir quick-lock mount (pre-installed)
(1) Protective lens cap
(1) Payload transport sleeve
(1) Quick-start & safety guide
Compatibility
WingtraRAY
